Metrics¶
dstack
automatically tracks essential metrics, which you can access via the CLI and UI.
You can also configure the dstack
server to export metrics to Prometheus—this is required to access advanced metrics such as those from DCGM.
UI¶

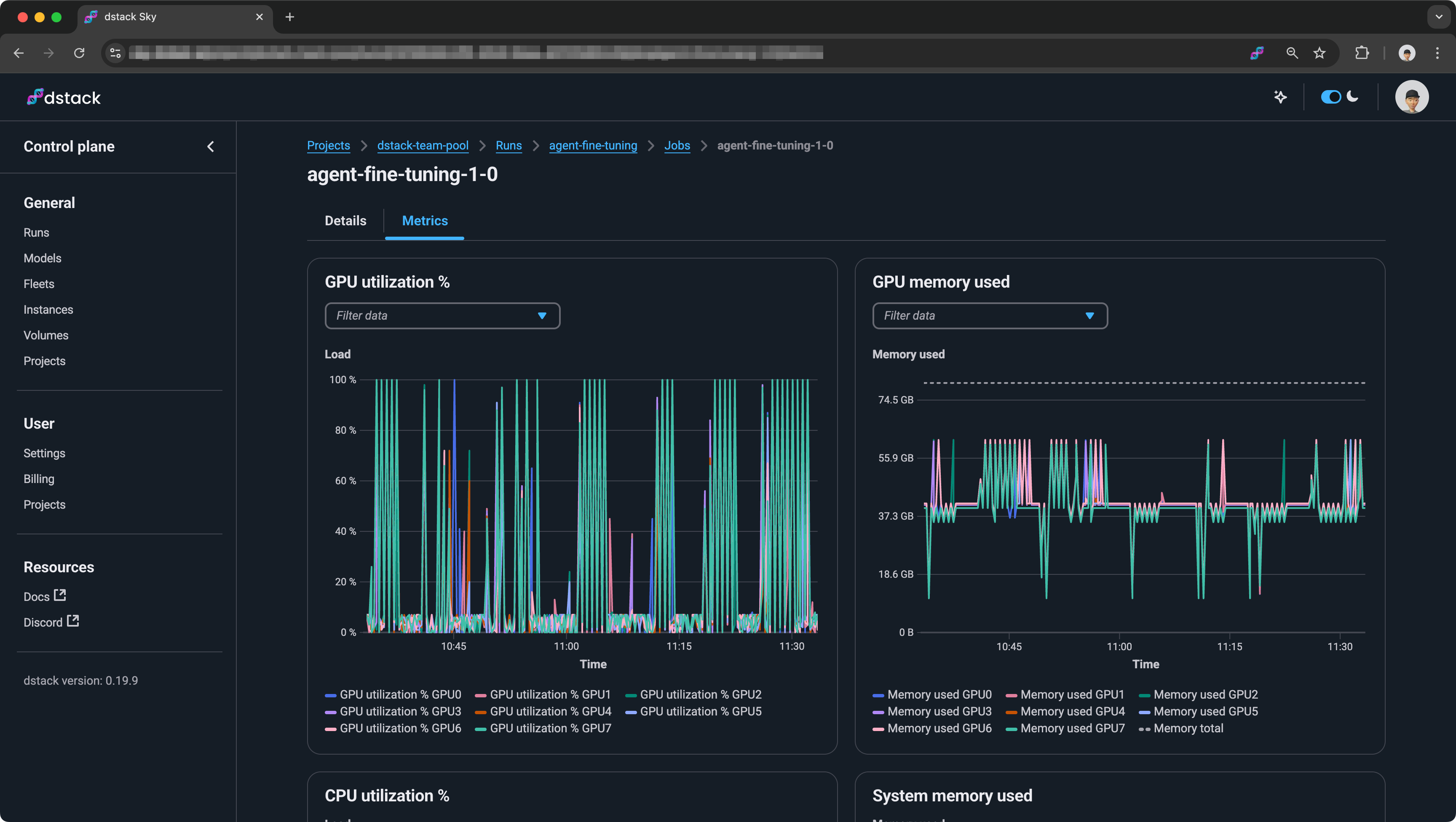

To access metrics via the UI, open the page of the corresponding run or job and switch to the Metrics
tab:
This tab displays key CPU, memory, and GPU metrics collected during the last hour of the run or job.
CLI¶
As an alternative to the UI, you can track real-time essential metrics via the CLI.
The dstack metrics
command displays the most recently tracked CPU, memory, and GPU metrics.
dstack metrics gentle-mayfly-1
NAME STATUS CPU MEMORY GPU
gentle-mayfly-1 done 0% 16.27GB/2000GB gpu=0 mem=72.48GB/80GB util=0%
gpu=1 mem=64.99GB/80GB util=0%
gpu=2 mem=580MB/80GB util=0%
gpu=3 mem=4MB/80GB util=0%
gpu=4 mem=4MB/80GB util=0%
gpu=5 mem=4MB/80GB util=0%
gpu=6 mem=4MB/80GB util=0%
gpu=7 mem=292MB/80GB util=0%
Prometheus¶
To enable exporting metrics to Prometheus, set the
DSTACK_ENABLE_PROMETHEUS_METRICS
environment variable and configure Prometheus to scrape metrics from
<dstack server URL>/metrics
.
In addition to the essential metrics available via the CLI and UI, dstack
exports additional metrics to Prometheus, including data on fleets, runs, jobs, and DCGM metrics.
NVIDIA DCGM
NVIDIA DCGM metrics are automatically collected for aws
, azure
, gcp
, and oci
backends,
as well as for SSH fleets.
To ensure NVIDIA DCGM metrics are collected from SSH fleets, ensure the datacenter-gpu-manager-4-core
,
datacenter-gpu-manager-4-proprietary
, and datacenter-gpu-manager-exporter
packages are installed on the hosts.
Fleets¶
Fleet metrics include metrics for each instance within a fleet. This includes information such as the instance's running time, price, GPU name, and more.
Name | Type | Description | Examples |
---|---|---|---|
dstack_instance_duration_seconds_total |
counter | Total instance runtime in seconds | 1123763.22 |
dstack_instance_price_dollars_per_hour |
gauge | Instance price, USD/hour | 16.0 |
dstack_instance_gpu_count |
gauge | Instance GPU count | 4.0 , 0.0 |
Name | Type | Description | Examples |
---|---|---|---|
dstack_project_name |
string | Project name | main |
dstack_fleet_name |
string? | Fleet name | my-fleet |
dstack_fleet_id |
string? | Fleet ID | 51e837bf-fae9-4a37-ac9c-85c005606c22 |
dstack_instance_name |
string | Instance name | my-fleet-0 |
dstack_instance_id |
string | Instance ID | 8c28c52c-2f94-4a19-8c06-12f1dfee4dd2 |
dstack_instance_type |
string? | Instance type | g4dn.xlarge |
dstack_backend |
string? | Backend | aws , runpod |
dstack_gpu |
string? | GPU name | H100 |
Runs¶
Run metrics include run counters for each user in each project.
Name | Type | Description | Examples |
---|---|---|---|
dstack_run_count_total |
counter | The total number of runs | 537 |
dstack_run_count_terminated_total |
counter | The number of terminated runs | 118 |
dstack_run_count_failed_total |
counter | The number of failed runs | 27 |
dstack_run_count_done_total |
counter | The number of successful runs | 218 |
Name | Type | Description | Examples |
---|---|---|---|
dstack_project_name |
string | Project name | main |
dstack_user_name |
string | User name | alice |
Jobs¶
A run consists of one or more jobs, each mapped to an individual container. For distributed workloads or auto-scalable services, a run spans multiple jobs.
Job metrics provide detailed insights into each job within a run, including execution time, cost, GPU model, DCGM telemetry, and more.
Name | Type | Description | Examples |
---|---|---|---|
dstack_job_duration_seconds_total |
counter | Total job runtime in seconds | 520.37 |
dstack_job_price_dollars_per_hour |
gauge | Job instance price, USD/hour | 8.0 |
dstack_job_gpu_count |
gauge | Job GPU count | 2.0 , 0.0 |
dstack_job_cpu_count |
gauge | Job CPU count | 32.0 |
dstack_job_cpu_time_seconds_total |
counter | Total CPU time consumed by the job, seconds | 11.727975 |
dstack_job_memory_total_bytes |
gauge | Total memory allocated for the job, bytes | 4009754624.0 |
dstack_job_memory_usage_bytes |
gauge | Memory used by the job (including cache), bytes | 339017728.0 |
dstack_job_memory_working_set_bytes |
gauge | Memory used by the job (not including cache), bytes | 147251200.0 |
DCGM_FI_DEV_GPU_UTIL |
gauge | GPU utilization (in %) | |
DCGM_FI_DEV_MEM_COPY_UTIL |
gauge | Memory utilization (in %) | |
DCGM_FI_DEV_ENC_UTIL |
gauge | Encoder utilization (in %) | |
DCGM_FI_DEV_DEC_UTIL |
gauge | Decoder utilization (in %) | |
DCGM_FI_DEV_FB_FREE |
gauge | Framebuffer memory free (in MiB) | |
DCGM_FI_DEV_FB_USED |
gauge | Framebuffer memory used (in MiB) | |
DCGM_FI_PROF_GR_ENGINE_ACTIVE |
gauge | The ratio of cycles during which a graphics engine or compute engine remains active | |
DCGM_FI_PROF_SM_ACTIVE |
gauge | The ratio of cycles an SM has at least 1 warp assigned | |
DCGM_FI_PROF_SM_OCCUPANCY |
gauge | The ratio of number of warps resident on an SM | |
DCGM_FI_PROF_PIPE_TENSOR_ACTIVE |
gauge | Ratio of cycles the tensor (HMMA) pipe is active | |
DCGM_FI_PROF_PIPE_FP64_ACTIVE |
gauge | Ratio of cycles the fp64 pipes are active | |
DCGM_FI_PROF_PIPE_FP32_ACTIVE |
gauge | Ratio of cycles the fp32 pipes are active | |
DCGM_FI_PROF_PIPE_FP16_ACTIVE |
gauge | Ratio of cycles the fp16 pipes are active | |
DCGM_FI_PROF_PIPE_INT_ACTIVE |
gauge | Ratio of cycles the integer pipe is active | |
DCGM_FI_PROF_DRAM_ACTIVE |
gauge | Ratio of cycles the device memory interface is active sending or receiving data | |
DCGM_FI_PROF_PCIE_TX_BYTES |
counter | The number of bytes of active PCIe tx (transmit) data including both header and payload | |
DCGM_FI_PROF_PCIE_RX_BYTES |
counter | The number of bytes of active PCIe rx (read) data including both header and payload | |
DCGM_FI_DEV_SM_CLOCK |
gauge | SM clock frequency (in MHz) | |
DCGM_FI_DEV_MEM_CLOCK |
gauge | Memory clock frequency (in MHz) | |
DCGM_FI_DEV_MEMORY_TEMP |
gauge | Memory temperature (in C) | |
DCGM_FI_DEV_GPU_TEMP |
gauge | GPU temperature (in C) | |
DCGM_FI_DEV_POWER_USAGE |
gauge | Power draw (in W) | |
DCGM_FI_DEV_TOTAL_ENERGY_CONSUMPTION |
counter | Total energy consumption since boot (in mJ) | |
DCGM_FI_DEV_PCIE_REPLAY_COUNTER |
counter | Total number of PCIe retries | |
DCGM_FI_DEV_XID_ERRORS |
gauge | Value of the last XID error encountered | |
DCGM_FI_DEV_POWER_VIOLATION |
counter | Throttling duration due to power constraints (in us) | |
DCGM_FI_DEV_THERMAL_VIOLATION |
counter | Throttling duration due to thermal constraints (in us) | |
DCGM_FI_DEV_SYNC_BOOST_VIOLATION |
counter | Throttling duration due to sync-boost constraints (in us) | |
DCGM_FI_DEV_BOARD_LIMIT_VIOLATION |
counter | Throttling duration due to board limit constraints (in us) | |
DCGM_FI_DEV_LOW_UTIL_VIOLATION |
counter | Throttling duration due to low utilization (in us) | |
DCGM_FI_DEV_RELIABILITY_VIOLATION |
counter | Throttling duration due to reliability constraints (in us) | |
DCGM_FI_DEV_ECC_SBE_VOL_TOTAL |
counter | Total number of single-bit volatile ECC errors | |
DCGM_FI_DEV_ECC_DBE_VOL_TOTAL |
counter | Total number of double-bit volatile ECC errors | |
DCGM_FI_DEV_ECC_SBE_AGG_TOTAL |
counter | Total number of single-bit persistent ECC errors | |
DCGM_FI_DEV_ECC_DBE_AGG_TOTAL |
counter | Total number of double-bit persistent ECC errors | |
DCGM_FI_DEV_RETIRED_SBE |
counter | Total number of retired pages due to single-bit errors | |
DCGM_FI_DEV_RETIRED_DBE |
counter | Total number of retired pages due to double-bit errors | |
DCGM_FI_DEV_RETIRED_PENDING |
counter | Total number of pages pending retirement | |
DCGM_FI_DEV_UNCORRECTABLE_REMAPPED_ROWS |
counter | Number of remapped rows for uncorrectable errors | |
DCGM_FI_DEV_CORRECTABLE_REMAPPED_ROWS |
counter | Number of remapped rows for correctable errors | |
DCGM_FI_DEV_ROW_REMAP_FAILURE |
gauge | Whether remapping of rows has failed | |
DCGM_FI_DEV_NVLINK_CRC_FLIT_ERROR_COUNT_TOTAL |
counter | Total number of NVLink flow-control CRC errors | |
DCGM_FI_DEV_NVLINK_CRC_DATA_ERROR_COUNT_TOTAL |
counter | Total number of NVLink data CRC errors | |
DCGM_FI_DEV_NVLINK_REPLAY_ERROR_COUNT_TOTAL |
counter | Total number of NVLink retries | |
DCGM_FI_DEV_NVLINK_RECOVERY_ERROR_COUNT_TOTAL |
counter | Total number of NVLink recovery errors | |
DCGM_FI_DEV_NVLINK_BANDWIDTH_TOTAL |
counter | Total number of NVLink bandwidth counters for all lanes | |
DCGM_FI_DEV_NVLINK_BANDWIDTH_L0 |
counter | The number of bytes of active NVLink rx or tx data including both header and payload | |
DCGM_FI_PROF_NVLINK_RX_BYTES |
counter | The number of bytes of active PCIe rx (read) data including both header and payload | |
DCGM_FI_PROF_NVLINK_TX_BYTES |
counter | The number of bytes of active NvLink tx (transmit) data including both header and payload |
Label | Type | Description | Examples |
---|---|---|---|
dstack_project_name |
string | Project name | main |
dstack_user_name |
string | User name | alice |
dstack_run_name |
string | Run name | nccl-tests |
dstack_run_id |
string | Run ID | 51e837bf-fae9-4a37-ac9c-85c005606c22 |
dstack_job_name |
string | Job name | nccl-tests-0-0 |
dstack_job_id |
string | Job ID | 8c28c52c-2f94-4a19-8c06-12f1dfee4dd2 |
dstack_job_num |
integer | Job number | 0 |
dstack_replica_num |
integer | Replica number | 0 |
dstack_run_type |
string | Run configuration type | task , dev-environment |
dstack_backend |
string | Backend | aws , runpod |
dstack_gpu |
string? | GPU name | H100 |
Server health metrics¶
These are operational metrics to monitor the health of the dstack server. For now, these only include HTTP metrics, but more will be added later.
Name | Type | Description | Examples |
---|---|---|---|
dstack_server_requests_total |
counter | Total number of HTTP requests | 100.0 |
dstack_server_request_duration_seconds |
histogram | HTTP request duration in seconds | 1.0 |
Name | Type | Description | Examples |
---|---|---|---|
method |
string | HTTP method | POST |
endpoint |
string | Endpoint path | /api/project/main/repos/get |
http_status |
string | HTTP status code | 200 |
project_name |
string? | Project name | main |
